H2O Hot Tubs Athena Swim Spa

Part of our incredible range of swim spa's, the Athena is a beautiful 4.8m spa designed for both aerobic exercise through swimming and then relaxation in the comfortable seats at the other end, where your aching muscles will be soothed by hydrotherapy massage. Athena is a swim spa of epic proportions. Perfect for those who want to combine the joys of swimming at home with hot water and relaxation thanks to the two captain's chairs at the other end to the swim jets.

Enjoy a workout like no other, with hot water stimulating the muscles as you swim against the River Waterway swimming jets which power against you at varying speeds.

Energy efficient

The Athena Series benefits from our new HeatBank insulation system. This aims to reduce the amount of heat loss through the cabinet and the floor of your spa, ensuring low running costs and making this an Eco Friendly swim spa by reducing energy bills. To add to the efficient running cost we have installed the Athena series with the latest North American gecko pumps. These are around 20% more efficient than premium pumps and help to cut down on overall running costs.

Entertainment & technology

Using the latest Gecko k1000 touch screen panel is so easy, it's like operating your spa with your phone.

Enjoy a relaxing and fun atmosphere, thanks to the LED lighting system, which also features a LED waterfall. The lighting system will phase through a colour cycle which looks fantastic, especially at night time.

You can pair your smartphone to Athena via Bluetooth and stream your favourite music or podcast through internal speakers for a real party atmosphere, thanks to our Phantom wireless audio system with subwoofer for extra oomph!

Gecko Touch Screen Controls
Self Sanitising
Lucite Acrylic
32 Hydrotherapy Jets
Air Source Heat Pump - Optional
Phantom Wireless Audio & Subwoofer
Dedicated Circulation Pump
LED Mood-lighting
LED Cup Holders
32 AMP
Designed for UK Homes
Durable Aluminium Frame
ECO HeatBank™ insulation

Seating Capacity 3 persons
Dimensions 4800 x 2300 x 1310mm (Length x Width x Height)
Water Capacity 5520 litres
Dry Weight 1009 kg
Gross Weight 1149 kg
Hydromassage Jets 32
Jets 3 x 5" Jets
3 x 3" Jets
24 x 2" Jets
Jet Pumps 3 x 3 HP
Filter System 100 sq. ft./9.3 m² effective filtration area
Control System Gecko k1000
Lighting LED underwater light
LED waterline lights
LED Cup Holders
Ozone System yes
Heater 3 kW
Maximal Current Draw 32 AMP
Structural Frame Aluminium
Skirting PU Heat Lock
Shell Insulation High density foam
Base HeatBank™ insulated sandwich PVC
Cabinet Insulation HeatBank™
Cover Insulation 100-120 mm

Gecko Touch Screen Controls
Athena comes with the award-winning Gecko Controls system, meaning this hot tub is extremely easy to use! With leading edge design and state-of-the-art build quality, the Gecko system should last a lifetime, as the panel utilises a patented Piezo electronic switch which eliminates moisture in harsh environments.


Comfort Captains Chair
At the relaxation end, Athena offers a luxurious captain's chair, for a deep full body hydrotherapy massage you'll just love, with a combination of jets massaging your back and shoulders.


Powerful Hydromassage

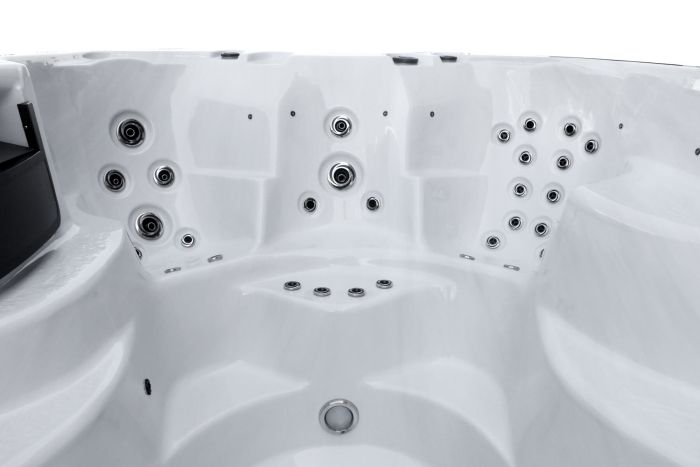

The Athena Series incorporates great hydrotherapy jets for an all-absorbing massage for the whole body. Various jet layouts for upper and lower back massage, neck and shoulder massage jets, leg massage jets and foot massage jets combine to one comprehensive massage system.

heat pump
Heat Pump Upgrade
This swim spa can be upgraded to have an Air Source Heat Pump, which allows for more economical and environmentally friendly enjoyment of your swim spa. You'll also benefit from lower running costs, saving up to 75% energy consumption in comparison with electric elements.


Phantom Bluetooth Audio
The Athena series features our latest Phantom WiFi Audio System with subwoofer. The speakers directly connected to the hot tub's shell, turning the shell into a large speaker. Simply connect it to your iPhone, iPad or Android device and start the magic.


LED Mood Light
The Athena series is installed with the latest LED mood lighting, no matter what your mood there is a setting for it. With up to 10 different sequences from strobe to fade you will love the flexibility this feature.

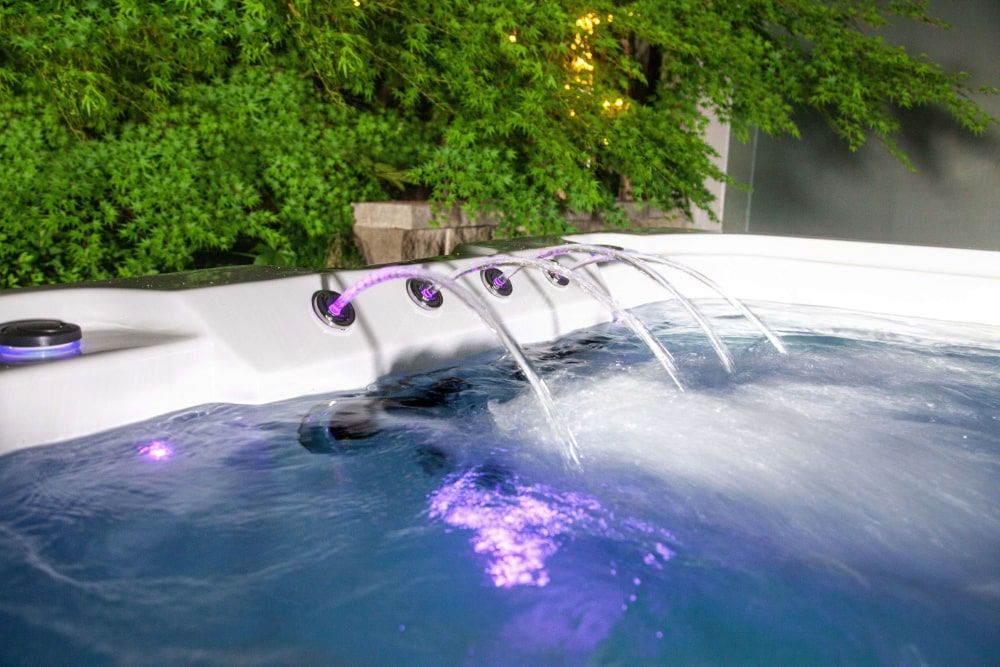

Waterfall
The Athena series is installed with the latest colour-changing waterfall, with LEDs that light up your swim spa at night. Research shows that the sound of running water aids the brain's relaxation process.


LED Cup Holders
Take full advantage of our new LED cup holders, we advise you use transparent plastic glasses. Place one on the cup holder and watch your favourite drink light up and come to life.


Clear Water System
This H2O swim spa is equipped with a state of the art no-bypass filtration system and an ozone disinfection system. Better filtration means more joy and longer product life.

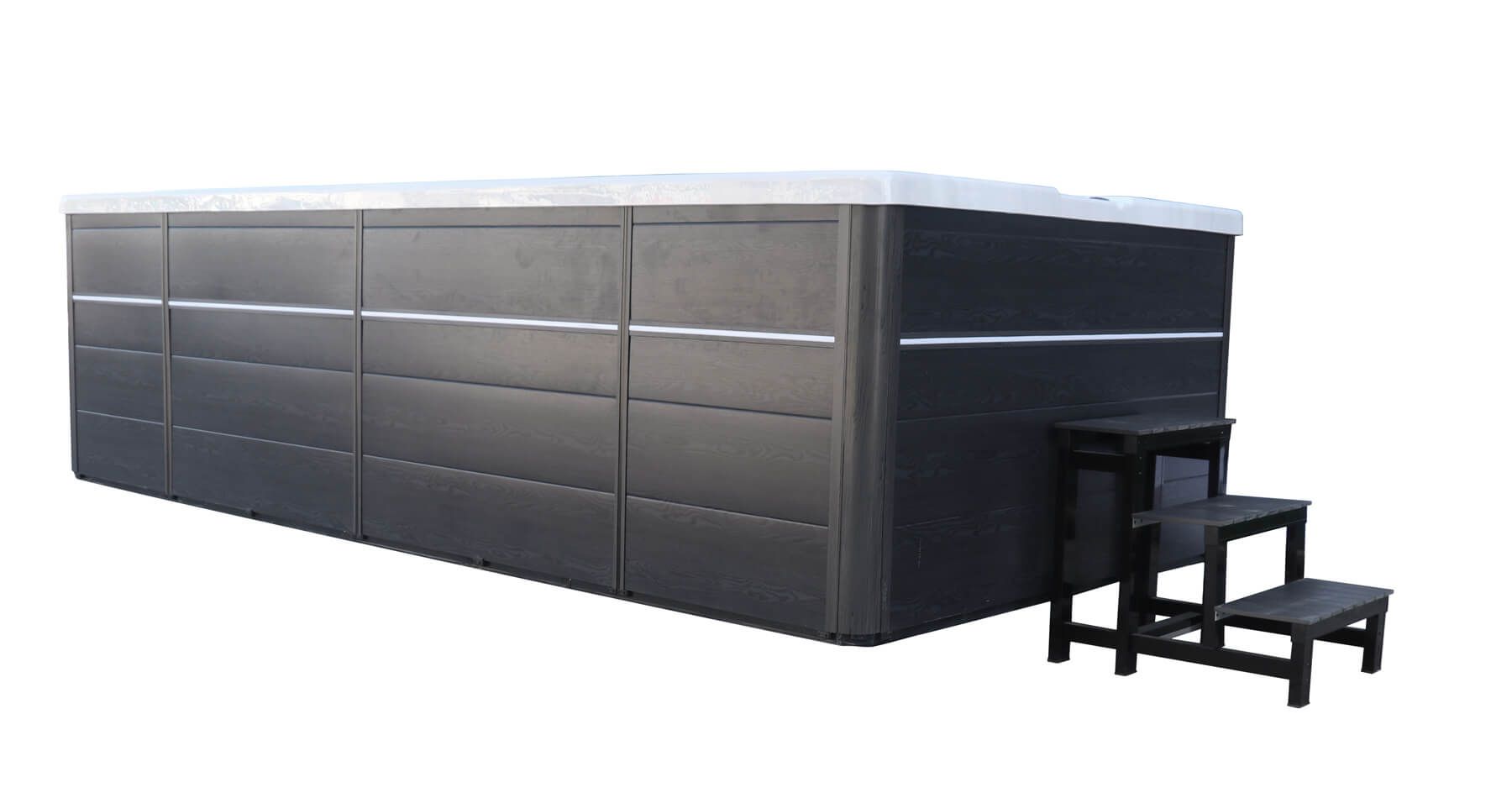

Built to Last
Most spas are installed outside. British weather is not always favourable to hot tubs. The Athena features our latest Aluminium frame and a wood composite cabinet which is weather tight and maintenance free, providing your spa with a new look all year round.


Heatbank™ Insulation
Insulation with HeatBank™ high density panels creates a thermal barrier to the environment. This revolutionary insulation reduces the thermal losses to the sides of your spa significantly.


Gecko Inside
Both our circulation and Jet pumps are Aqua-Flo by Gecko. Gecko pumps provide greater water flow rates more efficiently which translate, for spa owners, in increase benefits and reduced operating costs.
